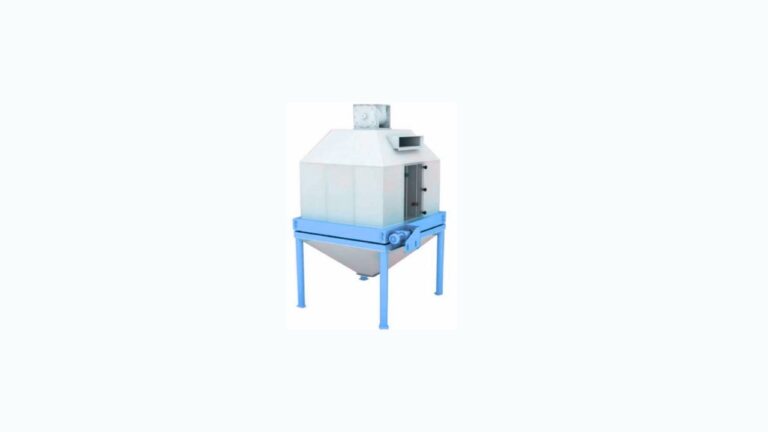

Counter Flow Cooler
Unloading mechanism consisting of one electro pneumatically adjustable, one stationary and one motor driven sliding grid discharge system Side walls with one transparent inspection door Level control sensors collecting hopper Rotary valve with electric motor Exhaust hood Pellet spreader.
Volume of cooling
m3 | Reducer motor | Package volume | Dimensions mm | |||||||||||
Model Type | Kw | d/dk | Net | Brut Gross | A | B | C | D | E | F | G | H | I | |
2,0 | MR 273-90S/4 | 1,1 | 21(Brake) | 9,42 | 10,84 | 1920 | 1650 | 2460 | 2320 | 700 | 200 | 600 | 250 | 250 |
2,8 | MR 273-90S/4 | 1,1 | 21(Brake) | 13,40 | 15,23 | 2400 | 1650 | 2900 | 2800 | 850 | 300 | 600 | 250 | 250 |
3,8 | MR 273-90S/4 | 1,1 | 21(Brake) | 19,38 | 21,66 | 2400 | 2130 | 3250 | 2800 | 850 | 250 | 1000 | 300 | 300 |
5,5 | MR 273-90S/4 | 1,1 | 21(Brake) | 25,50 | 28,27 | 2900 | 2130 | 3650 | 3280 | 1000 | 300 | 1250 | 300 | 300 |
7,5 | MR 473-100L/4 | 2,2 | 21(Brake) | 32,02 | 35,17 | 2900 | 2610 | 3740 | 3280 | 1000 | 300 | 1250 | 300 | 300 |
9,5 | MR 473-100L/4 | 2,2 | 21(Brake) | 40,38 | 44,09 | 3360 | 2610 | 4115 | 3760 | 1240 | 400 | 1250 | 300 | 300 |
